Product Description
The 90 degree stainless steel elbows produced by our company have advantages such as inner wall lubrication, low resistance to heat medium movement, acid and alkali resistance, long service life, and convenient installation. Widely used in industries such as petroleum, chemical, nuclear power plants, food manufacturing, construction, shipbuilding, papermaking, and pharmaceuticals.
Product Introduction
| Type | Industrial grade butt welded pipe fittings |
| Molding Process | Mandrel forming |
| Dimension | Seamless 1/2"-24"(DN15-DN600) /Welded 1/2”-48"(DN15-DN1200) |
| Standard | ASME B16.9, DIN 2605,JIS B2313, GB/T12459, GB/T13401, SH3408.SH3409, HG/T21635, HG/T21631.MSS SP-43 |
| Wall Thickness | SCH5S-SCH160 |
| Material | 317/L,3041L,316L,310/S,309/S,347/H,321/321H.904/L,S32760/F55S32750/F53/SAF2507.S32205/F60S31803/F51 |
| Certificate | ABS,PED97/23/EC,BV,DNV,TUV,EN,ISO,GOST,CCS,TS,CNPC,.GB/T 24001-2004ЛS0 14001:2004,GBT 28001/0HSAS 18001:2007 |

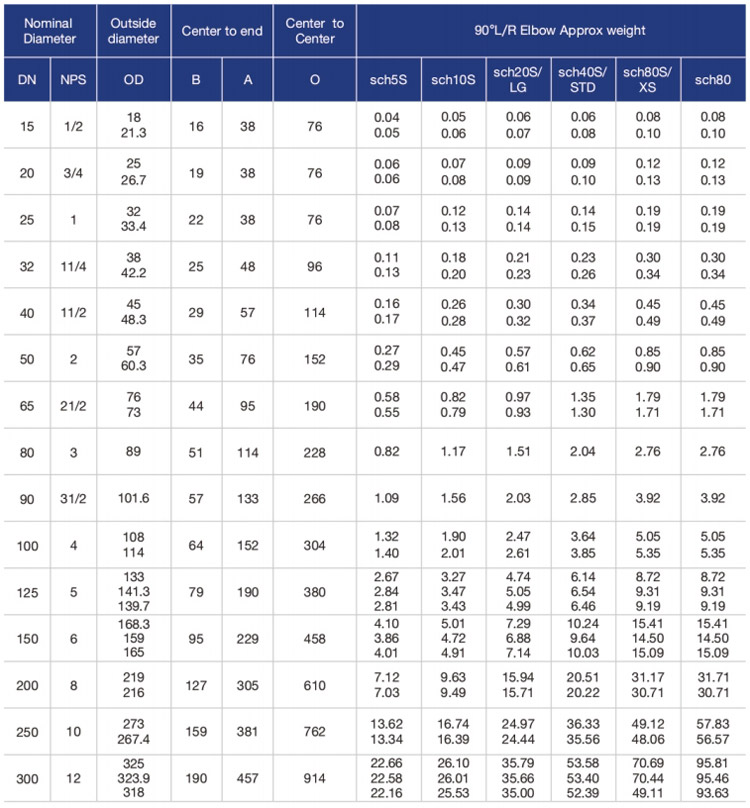

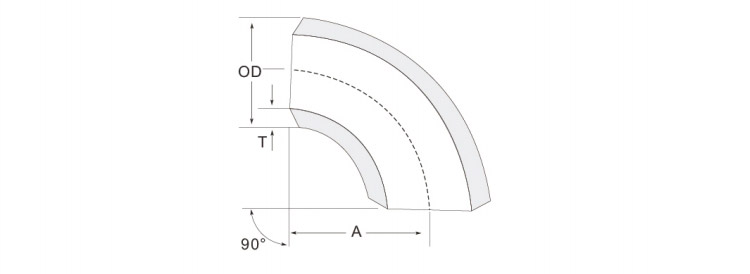

Product Size
Product Selection Parameters
